Review

Research Progress on Electromagnetic Wave Absorption of Silicon Carbide-Based Materials

  • Yuanjia Xia ,
  • Guobin Chen , * ,
  • Shuang Zhao ,
  • Zhifang Fei ,
  • Zhen Zhang ,
  • Zichun Yang , *
Expand
  • School of Power Engineering, Naval University of Engineering, Wuhan 430032, China
* e-mail: (Zichun Yang);
(Guobin Chen)

Received date: 2023-05-10

  Revised date: 2023-09-20

  Online published: 2023-12-10

Supported by

National Natural Science Foundation of China(51802347)

Natural Science Foundation of Hubei Provincial(2022CFB939)

Abstract

The research of high-performance electromagnetic wave-absorbing materials (WAM) is of great significance to enhance the stealth performance of weapons and equipment and solve the electromagnetic pollution problem. Silicon carbide (SiC) materials have good resistance to high temperature, corrosion and chemical stability, and show good application prospects in the field of electromagnetic wave absorption. However, the intrinsic properties of SiC materials are weak, and how to improve their wave-absorbing properties is an important research topic. Based on the electromagnetic wave-absorbing mechanism of SiC materials, firstly, the research status of SiC-based WAM with different morphologies (core-shell structure, aerogel structure, fibrous structure, hollow structure, MOFs structure, etc.) is analyzed and summarized. In addition, the research progress of composites of SiC with silicon carbide fibres, carbon materials and magnetic substances in the field of wave absorption is introduced in detail. The development status of special types of SiC-based WAM (SiC-based high-temperature WAM, SiC-based wave absorbing metamaterials, and SiC-based multifunctional WAM) is also reviewed. Finally, the future development direction of SiC-based WAM is prospected.

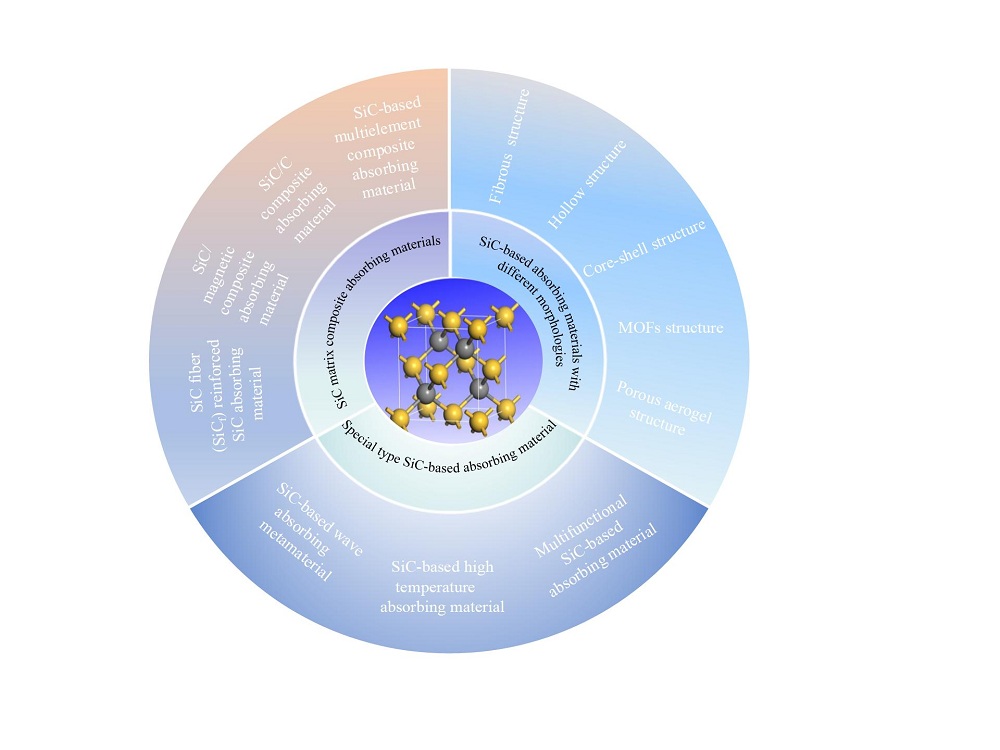

Contents

1 Introduction

2 absorbing mechanism of dielectric Absorbing materials

2.1 Evaluation mechanism of absorbing properties of materials

2.2 absorbing mechanism of dielectric Absorbing materials

2.3 Properties of intrinsic SiC materials

3 Research status of SiC-based absorbing materials with different morphologies

3.1 Fibrous structure

3.2 Hollow structure

3.3 Core-shell structure

3.4 MOFs structure

3.5 Porous aerogel structure

4 Research status of SiC matrix composite wave absorbing material

4.1 SiC fiber(SiCf)reinforced SiC wave absorbing material

4.2 SiC/magnetic composite wave absorbing material

4.3 SiC/C composite wave absorbing material

4.4 SiC-based multielement composite wave absorbing material

5 Special type SiC-based wave-absorbing material

5.1 SiC-based wave-absorbing metamaterial

5.2 SiC-based high temperature wave absorbing material

5.3 Multifunctional SiC-based wave absorbing material

6 Conclusion and outlook

Cite this article

Yuanjia Xia , Guobin Chen , Shuang Zhao , Zhifang Fei , Zhen Zhang , Zichun Yang . Research Progress on Electromagnetic Wave Absorption of Silicon Carbide-Based Materials[J]. Progress in Chemistry, 2024 , 36(1) : 145 -158 . DOI: 10.7536/PC230506

1 Introduction

With the rapid development of information science and wireless communication technology, a large number of electronic equipment has been widely used, and the growing electromagnetic pollution has attracted great attention, which not only interferes with the normal operation of precision electronic equipment, but also may cause harm to human health[1~4]. At the same time, all kinds of advanced reconnaissance and precision strike systems have come out one after another in modern warfare, which puts forward higher requirements for the stealth capability of weapons, equipment and military facilities[5]. Therefore, the research and development of high-performance electromagnetic wave absorbing materials is of great significance to solve various electromagnetic pollution problems and improve the stealth performance of weapons and equipment.
Electromagnetic absorbing materials can be divided into magnetic loss and dielectric loss according to the different loss mechanisms of electromagnetic wave. Common magnetic loss absorbing materials mainly rely on hysteresis loss and ferromagnetic resonance loss to achieve efficient electromagnetic wave absorption performance, mainly including oxides, compounds and alloys containing magnetic metals such as Ni, Fe, Co, etc. These materials will show paramagnetism at high temperatures (above the Curie temperature of the material), resulting in the decline of absorbing performance[6~8][9]. Dielectric loss can be divided into conductive type and dielectric type. For conductive absorbing materials, they mainly convert electromagnetic wave energy into heat energy to lose electromagnetic wave, mainly including carbon-based materials and conductive polymer materials, which are easy to oxidize and decompose at high temperature, and have poor stability at high temperature[10,11][12]. In contrast, dielectric absorbing materials lose electromagnetic waves by ionic polarization, electronic polarization, interface polarization and dipole relaxation polarization, while in the centimeter band (2 ~ 18 GHz), they can not produce polarization loss due to their short formation time.Therefore, the electronic and ionic displacement polarization can be ignored, so in the microwave frequency range, the dielectric loss is mainly the interface polarization and dipole relaxation polarization. At present, the dielectric absorbing materials mainly include zinc oxide (ZnO), silicon carbide (SiC), etc., which have good thermal stability[13][14].
As a typical dielectric radar absorbing material, SiC has excellent properties such as high temperature resistance, corrosion resistance, oxidation resistance and high mechanical strength, and is a promising multifunctional radar absorbing material[15~18]. However, the electrical conductivity and dielectric loss of intrinsic SiC materials are low, and the impedance matching performance needs to be further improved. In recent years, in order to further improve the absorbing properties of SiC materials, a large number of new SiC-based absorbing materials have been developed. On the one hand, through the innovation of new preparation processes, the preparation of multi-morphology SiC materials can be realized, and the electronic polarization and interface polarization effects can be enhanced by morphology control, mainly including porous structure, nanowire structure, core-shell structure, etc[19][13][20]; On the other hand, the impedance matching performance of the material is improved by adopting a composite loss mechanism through multi-element compounding with materials such as a magnetic wave-absorbing material, a conductive loss material, an intrinsic SiC fiber and the like[21~23]. In this paper, the dielectric loss mechanism of SiC is discussed from the aspect of microwave absorption mechanism; At the same time, the SiC-based radar absorbing materials in recent years are reviewed from the perspectives of morphology control and material composite, and the research status of special types (high temperature radar absorbing, radar absorbing metamaterials, multifunctional radar absorbing materials) of SiC-based radar absorbing materials are analyzed and summarized.Finally, the future development trend is prospected.

2 Absorbing mechanism of dielectric absorbing materials

2.1 Evaluation mechanism of material absorbing properties

The microwave absorbing properties of materials are mainly related to the impedance matching characteristics and microwave attenuation properties of materials.
For the impedance matching characteristics, it is necessary to meet certain boundary conditions when designing the material, so as to minimize the reflection of the electromagnetic wave incident on the surface of the material, so that more of it can enter the material. The impedance matching characteristics are related to the electromagnetic characteristics of the material, the frequency of the electromagnetic wave, the thickness of the coating, and other factors. According to the transmission line theory, its normalization is shown in equation (1):[24]
${{Z}_{\text{in}}}={{({{\mu }_{\text{r}}}/{{\varepsilon }_{r}})}^{1/2}}\tanh [\text{j}(2\text{ }\!\!\pi\!\!\text{ }fd/c){{({{\mu }_{\text{r}}}{{\varepsilon }_{r}})}^{1/2}}]$
Where :Zin represents the input impedance of the absorbing material, εr and μr represent the complex permittivity and complex permeability, respectively, d represents the coating thickness, C is the speed of light, and f is the frequency of electromagnetic wave. The input impedance should be consistent with the impedance of the absorber for good matching characteristics, and the optimal matching condition of electromagnetic parameters is that the εr is infinitely close to the μr. In the microwave band, the permittivity of existing absorbing materials is often greater than the permeability, so minimizing the difference between them can improve the impedance matching performance.
For the attenuation characteristics of the material, the absorbing material is required to have a higher imaginary part of the electromagnetic parameter to attenuate the electromagnetic wave by strengthening the polarization and magnetization of the material, as shown in formula (2):[25]
$\begin{array}{l} \alpha=\sqrt{2} \frac{\pi f}{c} \\ \left\{\left(u_{r}{ }^{\prime \prime} \varepsilon_{r}{ }^{\prime \prime}-u_{r}{ }^{\prime} \varepsilon_{r}{ }^{\prime}\right)+\left[\left(u_{r}{ }^{\prime \prime} \varepsilon_{r}{ }^{\prime \prime}-u_{r}{ }^{\prime} \varepsilon_{r}{ }^{\prime}\right)^{2}+\left(u_{r}{ }^{\prime \prime} \varepsilon_{r}{ }^{\prime}+u_{r}{ }^{\prime} \varepsilon_{r}{ }^{\prime \prime}\right)^{2}\right]^{\frac{1}{2}}\right\}^{\frac{1}{2}} \end{array}$
The attenuation constant is positively correlated with the electromagnetic wave loss ability of the material, that is, the larger the attenuation constant is, the stronger the electromagnetic wave loss ability is.
The reflection loss (RL) of the absorbing material to the electromagnetic wave is a parameter that comprehensively reflects the absorbing characteristics of the absorbing material, and the degree is expressed in decibel (dB), and the calculation formula is shown in formula (3):[24]
$RL=20\text{lg}\left| \frac{{{Z}_{\text{in}}}-1}{{{Z}_{\text{in}}}+1} \right|$

2.2 Lectromagnetic wave absorption mechanism of dielectric lossy material

Dielectric loss is the loss and absorption of electromagnetic waves by converting electromagnetic energy into heat energy through the action of materials themselves, which mainly includes dielectric loss caused by polarization effect and conductivity loss caused by thermal resistance effect[25].
In the centimeter band (2 ~ 18 GHz), the dielectric loss is mainly caused by the interface polarization and the dipole relaxation polarization. Interfacial polarization occurs at the interface of the incongruent phase. It is caused by the inhomogeneous aggregation of charged particles due to the external alternating electric field. Thermionic relaxation polarization and dipole polarization can be analyzed by Debye relaxation polarization theory, as shown in Equation (4)[26]. If the dielectric material has a relaxation polarization process, a semicircle curve called Cole-Cole semicircle will be formed in the coordinate system with the real part of the dielectric constant as the horizontal axis and the imaginary part of the dielectric constant as the vertical axis. To a certain extent, the number of Cole-Cole semicircles formed is positively correlated with the strength of the relaxation polarization effect.
$\left[ {\varepsilon }'-({{\varepsilon }_{s}}+{{\varepsilon }_{\infty }})/2 \right]+{{({\varepsilon }'')}^{2}}={{\left[ ({{\varepsilon }_{s}}-{{\varepsilon }_{\infty }})/2) \right]}^{2}}$
The conductance loss is related to the conductivity of the material. When there is an external electric field, the movement of electrons under the action of the electric field produces a macroscopic current, which produces a thermal effect under the action of the material resistance and dissipates energy[27]. In theory, the greater the conductivity of a material, the greater the macroscopic current generated and the greater is the thermal effect. In fact, when the conductivity of the material is high, the electromagnetic wave can only be distributed on the surface of the material and cannot enter the interior, so that the material becomes a reflector and produces skin effect. The skin depth of the ferromagnetic material can be obtained by using Maxwell's equations, as shown in equation (5):[28]
$\delta =\sqrt{1/\text{ }\!\!\pi\!\!\text{ }{{\mu }_{0}}{{\mu }_{i}}\sigma f}$
Where μi represents the initial permeability and σ is the electrical conductivity of the material. It can be seen from the formula (5) that the higher the frequency of the electromagnetic wave is, the smaller the skin depth is. If the skin depth is smaller than the particle size, the electromagnetic wave can only act on the surface of the material. Therefore, the development of small-size absorbing materials plays an important role in counteracting the skin effect.

2.3 Properties of Intrinsic SiC

Silicon carbide is a typical wide band gap semiconductor, which has adjustable electrical properties, good high temperature and oxidation resistance, low thermal expansion coefficient and high mechanical strength, and can be used in a variety of high temperature and high corrosive environments, such as high temperature insulation, electromagnetic wave absorption, filtration and catalyst support[29]. There are more than 250 different stacking sequence types of SiC, mainly cubic β-SiC (3C-SiC) and hexagonal α-SiC (including 2H-SiC, 4H-SiC, 6H-SiC), and their stacking sequences are shown in Fig. 1[12]. Different types of materials show different microwave absorbing properties. For dielectric loss SiC materials, the conductivity of different materials plays an important role in its dielectric loss properties. For the band gap of several common types of SiC at present, 3C-SiC has the lowest band gap, thus showing more excellent dielectric properties[30].

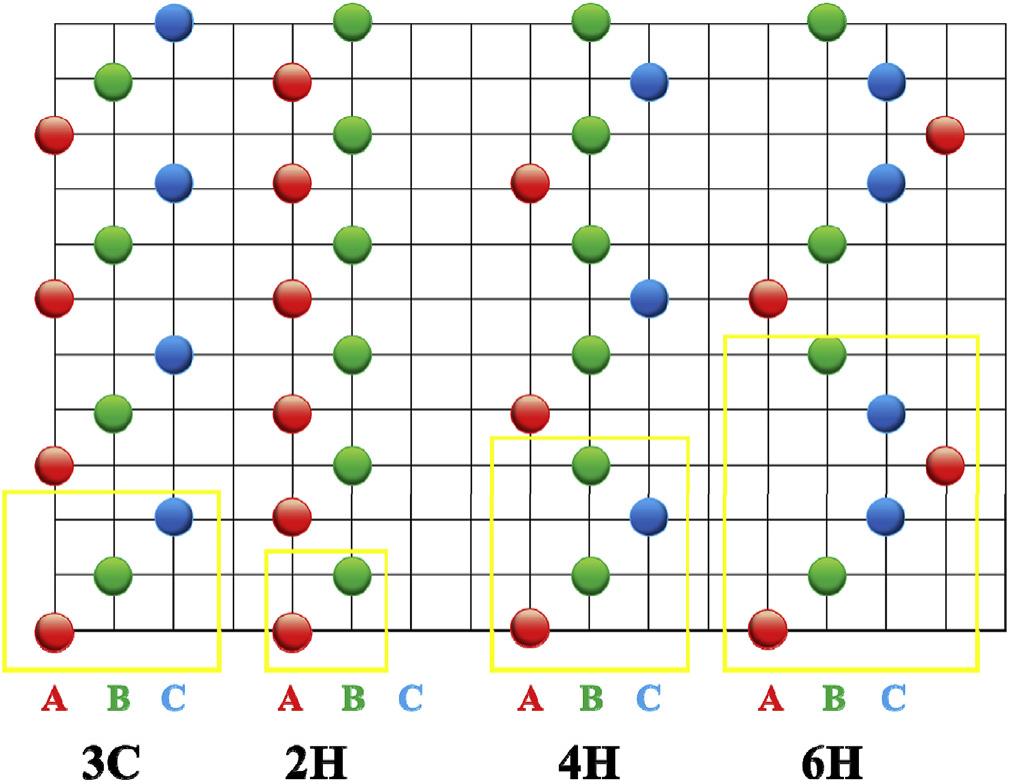

图1 不同类型SiC的堆叠序列图[12]

Fig. 1 Stacking sequence diagram of different types of SiC[12]

3 Research Status of SiC-based Microwave Absorbing Materials with Different Morphologies

The micro-morphology of the material has a great influence on its absorbing properties, so changing the micro-morphology of the material can improve its absorbing properties; At the same time, the micro-morphology control can further deepen the development goal of lightening the absorbing materials. At present, the micromorphologies of common SiC absorbing materials mainly include fibrous structure, porous structure, core-shell structure, metal-organic framework (MOFs) structure, etc., and their absorbing properties are shown in Table 1.
表1 不同微观形貌SiC基吸波材料的吸波性能表

Table 1 The absorbing properties of SiC based absorbing

Micromorphology Concrete structure type Type of material Minimum reflection loss (RLmin) Minimum reflection loss frequency (GHz) Effective absorbing bandwidth (GHz) Optimum matching thickness (mm) ref
Fiber structure Fiber matrix SiC/Hfc −33.9 12.8 7.4 3.0 38
Fiber reinforcement SiC/Mu −38 12 Covering X-band 3.9 40
Hollow structure Hollow fiber SiC −25.7 14.9 5 2.0 41
Hollow microsphere SiC −51.74 12.08 6.05 4.0 42
Hollow foam SiC/C −50.75 6 2.72 4.85 43
Core-shell structure Core-shell fiber CNTs@SiC −59.3 8.2 4.8 1.7 44
SiC/SiO2 −32.72 13.84 5.32 3.5 45
Core-shell microspheres SiC/SiO2 −54.68 8.99 8.49 4.92 46
MOFs Ni-MOF SiC NWs −47 9.32 5.92 2.0 50
SiC/Ni/NiO/C −50.52 13 2.96 2.5 51
Porous aerogel
structure
SiC −43.0 13 4 2.0 55
SiC@C −52.5 11.5 10.1 3..0 57

3.1 Fiber structure

Due to its unique morphology and structure, the fiber has unique properties different from powder materials in electronic transport, optics, magnetism, electricity, etc. At the same time, it has more excellent physical and chemical properties than the traditional bulk structure, such as low density, high temperature resistance, corrosion resistance, good mechanical strength, etc[31,32]. Therefore, nanofibers have become a very promising high-performance and multifunctional absorber, which is expected to achieve the comprehensive requirements of "thin, wide, light and strong". Among them, silicon carbide nanowire (SiCNWs) have the characteristics of large specific area, superior thermo-mechanical properties, adjustable electrical properties, high temperature resistance and oxidation resistance, which also show good application prospects in the field of electromagnetic wave absorption. At present, the preparation of absorbing SiCNWs mainly includes carbothermal reduction, vapor deposition, polymer precursor pyrolysis, electrospinning and so on[33][34][35][36]. Li et al. used polycarbosilane (PCS) as a precursor to prepare a flexible silicon carbide nanowire film by electrospinning and pyrolysis, as shown in Figure 2 (a). When the content of the material in the paraffin matrix is 10 wt%, it has good dielectric loss performance.The minimum reflection loss (RLmin) is − 41 dB, and the effective absorption bandwidth (EAB) is 5 GHz, which indicates that the three-dimensional network structure can effectively strengthen the polarization effect and improve the dielectric loss performance, and its mechanism diagram is shown in Fig. 2 (B)[36]. The material has the characteristics of low filling ratio and high efficiency of wave absorption, and also has the advantage of simple preparation. Changing the cross section of the fiber is of great significance to improve the microwave absorbing properties of fibrous SiC. Liu Xuguang used PCS as raw material to prepare silicon carbide fibers with special cross sections such as strip, trilobal, quatrefoil, pentalobal, hexalobal, seven-leaf, three-fold leaf, T-shape and C-shape by melt spinning, air curing and high temperature firing.It is found that the special-shaped fiber section changes the specific surface area and surface curvature of the fiber, thereby affecting the dielectric constant and polarization ability of the fiber, and improving its microwave absorbing properties[37]. In addition to intrinsic SiC fiber, SiC fiber can also be used as a matrix to introduce new phases to further improve its flexibility, dielectric properties and microwave absorption properties. Yi et al. Used SiC fiber felt as a template to introduce cemented carbide (HfC) phase, and when the HfC content was 2.5 wt%, the HfC/SiC nanofiber/silicone resin composite (10 wt%) had a RLmin of − 33.9 dB and an EAB of 7.4 GHz at 12.8 GHz with a matching thickness of 3 mm[38]. SiC fiber can be used not only as the matrix of flexible radar absorbing materials, but also as the reinforcement phase of ceramic matrix radar absorbing materials. Gao et al. Fabricated a SiC fiber/mullite-silica composite by precursor infiltration and sintering (PIS) process, and found that the microwave absorption properties of the composite were significantly enhanced from 8.2 GHz to 12.4 GHz when the SiC fiber was doped with (SiCf[39]. When the matching thickness is 2. 9 mm, the RLmin is − 44 dB at 12 GHz. At the same time, Gao et al. Also explored the effects of preparation conditions on the mechanical, dielectric and microwave absorption properties of SiCf/Mu composites[40]. The results show that the bending strength increases from 81 MPa to 213 MPa with the increase of sintering temperature. The SiCf/Mu has excellent electromagnetic wave absorption performance, the RLmin is − 38 dB at 12 GHz, the thickness is 2. 9 mm, and the effective absorption bandwidth covers the whole frequency range from 8. 2 GHz to 12. 4 GHz. SiC fiber radar absorbing material is a kind of good lightweight and flexible radar absorbing material, which can be used not only as a radar absorbing matrix material, but also as a reinforcement phase in other radar absorbing materials. However, the properties of SiC fiber absorbing materials are closely related to its fiber diameter, thickness, morphology and other factors. Further exploration of the relationship between fiber structure and absorbing properties is of great significance to guide the preparation of high-performance SiC fiber absorbing materials.

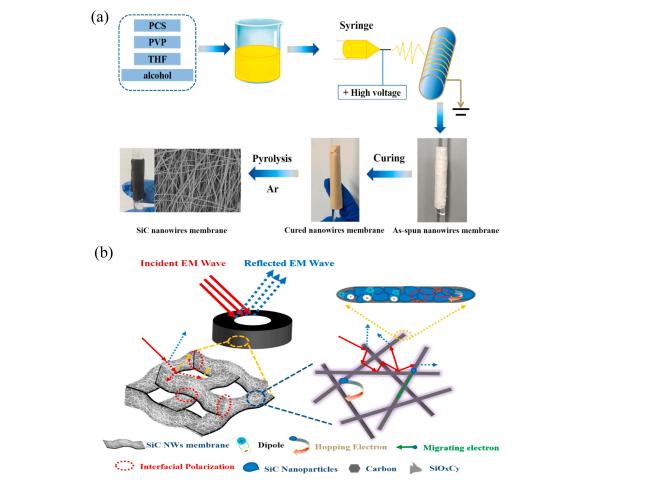

图2 SiC纳米线制备工艺及其机理图:(a) 柔性碳化硅纳米线膜的制备工艺;(b) 碳化硅纳米线吸波机理图[36]

Fig. 2 Preparation technology, mechanism, morphology and properties of SiC nanowires. (a) Preparation process of flexible silicon carbide nanowire membrane; (b) diagram of the absorption mechanism of silicon carbide nanowires[36]

3.2 Hollow structure

The hollow structure can make the electromagnetic wave reflect and scatter many times in the cavity, and has the characteristics of low density and high specific surface area, which can effectively improve the absorption rate of electromagnetic wave. At present, the common hollow SiC absorbing materials mainly include hollow spherical and hollow tubular structures and hollow foam structures. Xiao et al. Fabricated hollow silicon carbide microtubes by using carbon fiber (CF) as a template and SiC/CF coaxial material prepared by microwave heating as a template[41]. It is found that the hollow silicon carbide microtube has a dB@14.9 of − 25.7 dB@14.9 GHz and an EAB of 5 GHz at a sample thickness of 2 mm. The dielectric properties of the hollow silicon carbide microtube can be tuned by the wall thickness of the silicon carbide microtube. Using yeast as a biological template, Zhou et al. Prepared β-crystalline hollow silicon carbide with yeast micromorphology, with the maximum diameter of about 4.3 mm and the minimum diameter of about 3.5 mm[42]. It is found that hollow silicon carbide achieves a RLmin of − 51.74 dB at 12.08 GHz when the thickness is 3.1 mm, and an EAB of 6.05 GHz when the thickness is 4.0 mm. This is because the hollow spherical structure not only further reduces the weight of the absorber particles, but also effectively improves the impedance matching characteristics and the attenuation performance of electromagnetic waves. The absorbing mechanism is shown in Figure 3. The combination of hollow structure and porous structure can not only improve the absorbing performance, but also strengthen the mechanical properties of the material. In theory, the rich pore structure in absorbing materials will increase the number of reflection and scattering of electromagnetic waves in the pores, and improve the efficiency of electromagnetic absorption and loss. On the other hand, the existence of porous structure can also provide more polarization centers, strengthen the polarization effect, and may change the transmission path of electromagnetic waves, increasing the probability of electromagnetic wave dissipation through interference. Ye et al., using chemical vapor deposition and direct oxidation, fabricated a hollow silicon carbide foam with a double interconnected network, which had a superior compressive response of 14.09 MPa at a strain of 17.51%, and in addition, it achieved a RLmin of − 50.75 dB at 6 GHz when the thickness was 4.85 mm[43]. Generally speaking, the hollow structure has the characteristics of lightweight microwave absorption. Although the special hollow structure can effectively enhance the microwave absorption performance of the material, its preparation process is relatively complex, and how to achieve the controllable preparation of the hollow structure with low cost and high efficiency is a key and difficult problem.

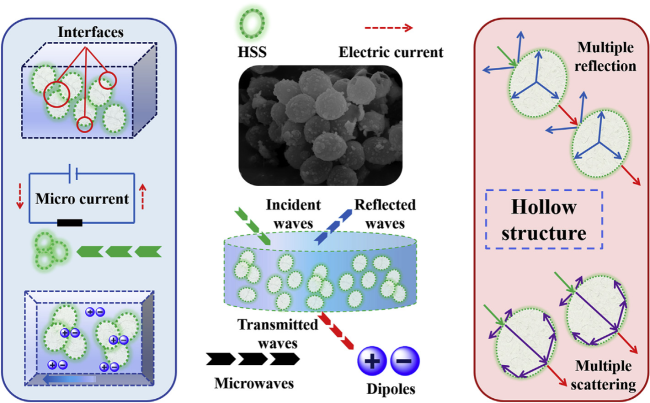

图3 中空球形粒子微波损耗机理图[42]

Fig. 3 Microwave loss mechanism diagram of hollow spherical particles[42]

3.3 Core-shell structure

Compared with the traditional absorbing materials, the core-shell structure composite absorbing materials can improve the impedance matching characteristics of the materials by compounding materials with different characteristics, thereby improving the absorbing properties of the materials, and the core-shell structure materials can also improve the absorbing properties of the materials by changing the proportion of the core-shell layer materials, the micro-morphology, the size of the core shell, and the like. At present, the common core-shell SiC absorbing materials mainly have core-shell fiber structure and core-shell spherical particle structure.

3.3.1 Core-shell fibrous

The core-shell fiber structure can be further improved on the basis of the good polarization effect and mechanical properties of the fiber material. Wang Weichao et al. Used Si and functionalized multi-walled carbon nanotubes (CNTs) as raw materials to prepare CNTs @ SiC coaxial core-shell structure composite absorbing materials by chemical vapor deposition (CVD)[44]. It is found that when m (Si): m (CNTs) = 1: 1.5 and the thickness is 1. 7 mm, the effective bandwidth reaches 4. 8 GHz, and the material also has good high temperature resistance and oxidation resistance. SiC can not only be used as a shell material to improve the high thermal stability of the material, but also as a core material to strengthen the loss mechanism. When SiC is used as a core material, SiO2 and other materials are often used as the shell material. Zhong et al. realized the efficient production of SiC/SiO2 core-shell nanowires by introducing water vapor in the chemical vapor deposition process. When the matching thickness of the material is 3.0 mm, the RLmin is − 32.72 dB at 13.84 GHz, and when the matching thickness of the material is 3.5 mm, the EAB is 5.32 GHz. At the same time, it also has low density, high thermal stability, excellent chemical resistivity and mechanical strength[45].

3.3.2 Core-shell spherical particle

The polarization effect of the traditional core-shell spherical particle structure absorbing material still has room for further improvement, and the absorbing performance of the core-shell spherical SiC absorbing material can be further improved in various ways. On the one hand, the specific surface area can be further improved by pore-making. Xiang et al. Prepared porous SiC/SiO2 core-shell microspheres by self-assembly technology and carbothermal reduction method, and found that when the heat treatment temperature was 1400 ℃, the porous non-uniform SiC/SiO2 microspheres showed the best electromagnetic wave absorption properties[46]; At 8.99 GHz, the RLmin is − 54.68 dB, and the maximum effective bandwidth (EABmax) reaches 8.49 GHz. On the other hand, the hollow spherical structure can be further coated with a core shell to realize the recombination of different losses. Using yeast as a template, Wei et al. Firstly prepared hollow silicon carbide spheres (HSS) with complete and uniform morphology by sol-gel method and carbothermal reduction method, and then uniformly coated a thin film composed of nickel nanoparticles (NPs) on the hollow silicon carbide spheres by Pd-activated alkaline electroless plating technology to obtain a novel microwave absorbing Ni/NPs coated hollow silicon carbide sphere (Ni @ HSS)[47]. The study shows that a RLmin of − 50.75 dB can be obtained when the thickness of the absorbing layer is 4.2 mm. An effective absorption bandwidth of 9.31 GHz can be achieved when the thickness of the absorption layer is 3.6 mm. The material not only uses the core-shell structure to combine magnetic metal with resistive silicon carbide, but also uses the hollow structure to reduce the overall mass and increase the number of reflection and scattering of electromagnetic waves inside the absorber, thus significantly improving the absorbing performance. The microwave loss mechanism is shown in Figure 4.

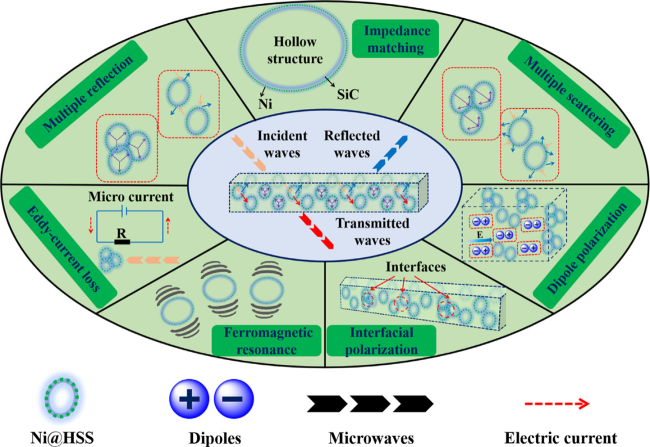

图4 Ni/NPs包覆的空心碳化硅球吸波机理图[47]

Fig. 4 Diagram of wave absorption mechanism of hollow silicon carbide spheres coated with Ni/NPs[47]

In a word, core-shell structures are mostly multi-component materials, which have better absorbing properties than single materials, but the realization of multi-layer core-shell structures also increases the cost and difficulty of preparation. In addition, how to develop core-shell structures with new configurations based on the absorbing mechanism is worth further exploration.

3.4 Structure of MOFs

Metal-organic frameworks (MOFs) are a kind of organic-inorganic hybrid porous crystal materials with periodic network structure, which are formed by coordination self-assembly of Metal nodes as Secondary building units (SBUs) and organic ligands. They have shown broad application prospects in the field of microwave absorption due to their structural diversity, high specific surface area and good structural tunability[48][49]. The structure of MOFs is regular polyhedral particles, and MOFs and their derivatives generally have a low aspect ratio, resulting in insufficient connectivity in the matrix, which is not conducive to further enhancing the absorbing properties. The structure of MOFs based on SiC nanowires can effectively solve this problem. Zhang et al. Grew a co-base MOF structure material on the surface of one-dimensional SiCNWs, and synthesized a roast-like MOFs/SiCNWs hybrid nanostructure, whose preparation method and micromorphology are shown in Fig. 5. Compared with pure SiCNWs and pure calcined MOFs, MOFs/SiCNWs calcined under air and argon showed significantly enhanced electromagnetic wave absorption capacity, and the EAB of the material could reach 5.92 GHz at a matching thickness of 2 mm[50]. This stems from its enlarged aspect ratio, improved connectivity within the material, and reduced complex dielectric constant, resulting in more electromagnetic waves entering the material, thus enhancing its interfacial polarization performance. At the same time, the introduction of magnetic materials into the structure of MOFs can further enhance the absorbing properties. Yang et al. Prepared a multi-component composite composed of silicon carbide, Ni, nickel monoxide, and carbon nanoparticles (NPs) by annealing silicon carbide NPs and Ni-based metal-organic frameworks (Ni-MOF) in argon[51]. Compared with the single silicon carbide NPs and Ni-MOF components, the SiC/Ni/NiO/C nanocomposite has a more efficient electromagnetic wave absorption (EWA) performance, achieving a RLmin of − 50.52 dB at 13 GHz when the material matching thickness is 4.0 mm. The structure of most MOFs-derived absorbing materials mainly depends on the structure of MOFs themselves, and how to further strengthen the design of the internal structure and further explore the relationship between its structure and performance needs further study. At the same time, how to improve the microwave absorbing properties of MOFs at low and wide frequencies is also a challenge.

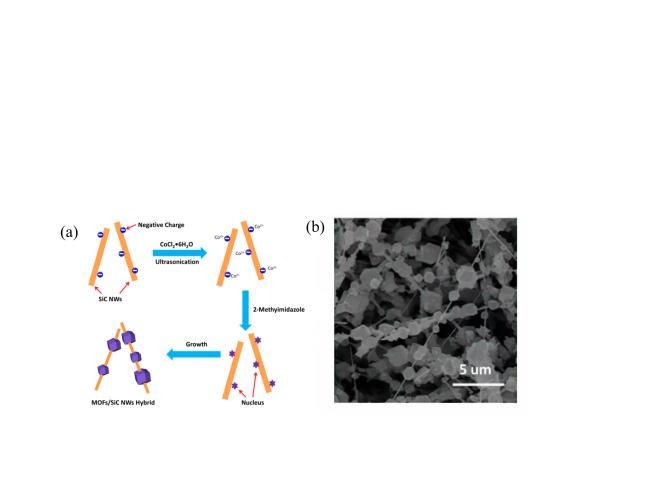

图5 基于SiCNMs的MOFs结构的制备示意图(a)与微观形貌图(b)[50]

Fig. 5 Preparation diagram (a) and microstructure diagram (b) of MOFs structure based on SiCNMs[50]

3.5 Porous aerogel structure

SiC aerogel is a typical ceramic aerogel, which has high strength, corrosion resistance, low thermal expansion coefficient and infrared shielding effect, making it a potential electromagnetic wave absorbing material in complex environment[52][53]. Wang Zhijiang's team of Harbin Institute of Technology prepared graphene oxide-derived silicon carbide aerogel by carbothermal reduction method. The results show that graphene oxide aerogel can be well converted into ultra-low density silicon carbide aerogel, which has the advantages of low density and wide absorbing bandwidth, and EAB can reach 5.5 GHz[54]; In addition, in order to reduce the cost of SiC preparation, the team also used biomass eggplant as a precursor to prepare biomass-derived SiC-based aerogel through freeze-drying, high-temperature carbonization and carbothermal reduction steps. The sample has a maximum RLmin of − 43 dB and an effective microwave absorption bandwidth of 4.0 GHz at a thickness of 2.0 mm[55]. The electromagnetic wave loss mechanism of silicon carbide aerogel should come from its special porous structure, good impedance matching, interfacial polarization, defect-induced dipole polarization, and locally formed micro-current. Using flexible nanofibers as the matrix to construct three-dimensional fiber aerogels can overcome the shortcomings of poor mechanical properties of traditional aerogels to a certain extent, and can further reduce the mass of materials, which is in line with the current development trend of absorbing materials. Professor Wang Hongjie's team at Xi'an Jiaotong University used chemical vapor deposition technology to prepare a large number of SiC-based fiber aerogels[56,57]. It is found that the conductive continuous network constructed by the fiber aerogel structure can reduce the energy barrier of electron hopping and provide a longer transmission path for the migration of free carriers, thus improving the conductive loss capability. In addition, in highly porous structures, the repeated reflection and scattering of electromagnetic field on the interface can further improve the absorption performance of electromagnetic wave. In addition to the common lightweight fiber aerogels, the preparation of hierarchical (layered) aerogel structure is also an effective way to improve the absorbing properties of SiC. From the macroscopic layering point of view, Wang Hongjie's team used the overlapping method to prepare high-performance electromagnetic wave absorbing aerogel composed of alternating multilayer wave transparent silicon nitride (N) layers and absorbing silicon carbide (C) layers, which has ultra-low density (∼8 mg/cm3), wide effective absorption bandwidth (8.4 GHz), and strong reflection loss (− 45 dB) performance at room temperature[58]. From the point of view of micro-stratification, Wang Zhijiang's team used free radical polymerization to add carbon fibers to hydrogel to form a three-dimensional framework, and introduced silicon carbide through carbothermal reduction reaction, thus preparing layered carbon fiber reinforced SiC/C/C (CF-SC) aerogel[59]. The method can wrap the carbon fiber in a porous skeleton to form a layered porous structure. The results show that when the matching thickness is 3. 2 mm, the RLmin of the material is − 52.6 dB and the EAB is 8. 6 GHz, which can cover the whole Ku-band, because the layered porous structure helps to build the conductive network of electron transfer.This leads to higher conductance loss, and in addition, extensive inhomogeneous interfaces are formed between the porous skeleton and the fiber, as well as between C and silicon carbide inside the material, which enhances the interfacial polarization and promotes the dissipation of electromagnetic waves.
As a new type of aerogel, the preparation process of SiC aerogel is more complex than that of traditional oxide and carbon aerogels, especially the ultra-light SiC fiber-based aerogels reported at present, which require high preparation conditions and cost. At the same time, there are still some shortcomings in the current preparation processes of SiC aerogels, such as how to solve the problems of large shrinkage and easy cracking of aerogels, how to improve the mechanical properties of materials, and how to take into account the economic requirements.

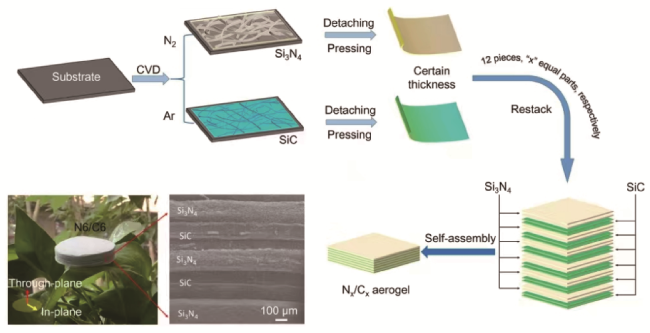

图6 SiN/SiC分层气凝胶的制备及其示意图[58]

Fig. 6 Preparation of SiN/SiC multilayered aerogels and their schematics[58]

4 Research Status of SiC Matrix Composite Radar Absorbing Material

Pure SiC phase belongs to dielectric absorbing materials with single polarization type, and its conductivity is also low (the conductivity of β-SiC single crystal is ˂10−6S/cm). In addition to strengthening the polarization effect by morphology control, material composite is still an effective way to improve the absorbing properties of SiC-based materials.

4.1 SiC fiber reinforced SiC radar absorbing material

SiC material is a wide band gap semiconductor, and SiC fiber (SiCf) has good resistivity tunability (resistivity tuning range :10−3~104Ω·m), and it also has high saturated carrier drift velocity and thermal conductivity, which plays an important role in improving the strength and dielectric properties of SiC materials[60][61]. Han et al. Prepared five-directional braided silicon carbide fiber preform reinforced SiCf/SiC composite by precursor infiltration pyrolysis (PIP), and found that the material had good microwave absorption ability, which could achieve a RLmin of − 16.1 dB at 8.2 GHz and an EAB of 1.5 GHz[62]. In order to solve the problem that the absorbing properties of SiCf/SiC composites prepared by traditional PIP method need to be further improved, Mu et al. Made some improvements on the PIP method. Firstly, the precursor of polycarbosilane (PCS) was properly crosslinked, and the SiC fiber was decarburized to prepare SiCf/SiC composites with strong absorbing properties.The results show that the reflection loss of the untreated composite is less than − 5 dB in the frequency range of 8. 2 ~ 18 GHz, while the RLmin and EAB of the treated composite with a thickness of 3. 1 mm are − 23.5 dB and 5. 9 GHz, respectively[63]. The use of coating technology on silicon carbide fibers also plays an important role in improving the electromagnetic wave absorption properties of silicon carbide fiber reinforced silicon carbide composite (SiCf/SiC). Huang et al. Deposited silicon carbide nanowires (SiCNWs) on pyrolytic carbon (PyC) coated silicon carbide by electrophoretic deposition (EPD), followed by silicon carbide chemical vapor infiltration (CVI) to obtain SiCNWs/PyC-SiCf/SiC composite[64]. The results show that the dB@15.6 of the composite is − 58.5 dB@15.6 GHz, and when the matching thickness is 2.2 mm, the EAB can reach 6.13 GHz (11.43 ~ 17.56 GHz), which is mainly due to the improvement of dielectric loss capability and impedance matching and the enhancement of multiple reflection of the material. The preparation method, morphology and loss mechanism are shown in Fig. 7. The principle and method of collaborative design of SiC fiber type, weaving pattern, interface layer and matrix electrical properties are very important for the performance optimization of SiCf/SiCstructural absorbing materials. At present, there is a lack of systematic research, and the synergistic optimization matching principle of absorbing properties and mechanical properties needs to be further studied[61].

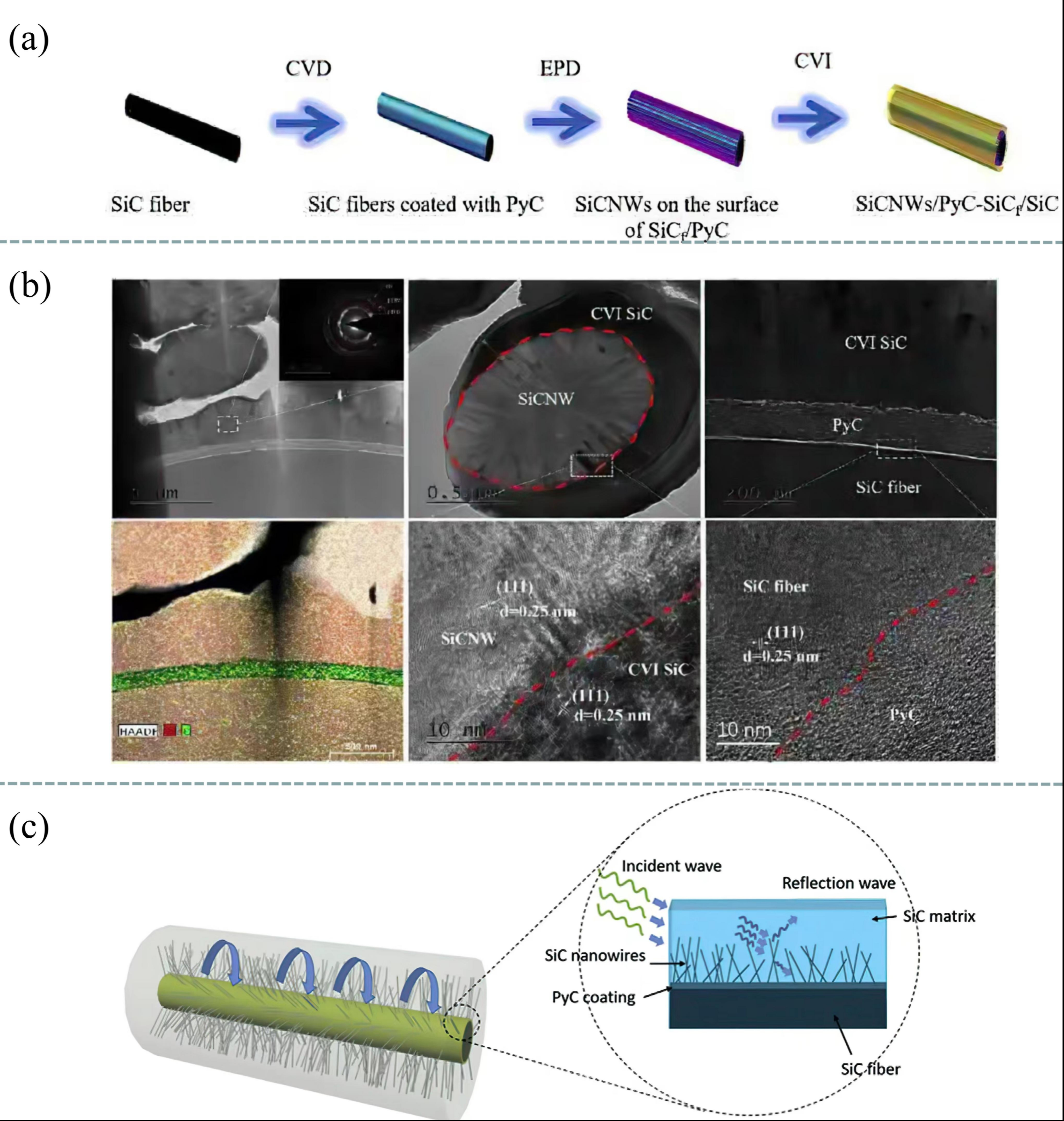

图7 SiCNWs/PyC-SiCf/SiC复合材料的制备、形貌及其吸波机理图:(a) 制备示意图;(b) 微观形貌图;(c) 吸波机理图[64]

Fig. 7 Preparation, morphology and absorption mechanism of SiCNWs/PyC-SiCf/SiC composites. (a) Preparation of schematic diagrams; (b) microscopic topography drawings; (c) diagram of absorption mechanism[64]

4.2 SiC/magnetic material composite radar absorbing material

In order to further improve the single loss mechanism of SiC materials, the magnetic loss is introduced by compounding SiC materials with magnetic materials, and the microwave absorption properties of SiC materials are further enhanced through the synergistic effect of the dual loss mechanism of magnetic loss and dielectric loss. The magnetic loss mechanism is mainly through hysteresis loss, ferromagnetic resonance and eddy current loss to absorb a large amount of electromagnetic wave energy and convert it into heat energy to achieve the goal of microwave absorption. At present, SiC-based materials are mainly compounded with magnetic materials such as Fe, Co and Ni.
Hou et al. Prepared Fe/SiC hybrid fibers by electrospinning and high-temperature (1300 ° C) pyrolysis using PCS and ferroferric oxide precursors[65]. The results show that the introduction of iron has a significant effect on the morphology, crystallization temperature and microwave electromagnetic properties of the hybrid fibers. In addition, the Fe particles can also be used as a catalyst to promote the growth of SiCO nanowires on the surface of the hybrid fiber.It is found that when the PCS/Fe ratio is 3: 0.5, the RLmin is about − 46.3 dB at 6.4 GHz, and the EAB can cover the C-band (4 ~ 8 GHz), which is an excellent microwave absorbing material, especially in the field of low-frequency microwave absorption. Wang et al. Prepared covalently bonded SiC/Co hybrid nanowires (NWs), and the analysis showed that Si — O — Co bonds were formed between SiC NWs and magnetic Co NCs[66]. The charge transfer occurs in the covalently bonded SiC/Co hybrid NWs. When the content of Co in the hybrid is 25.1 wt%, the cooperative coupling effect induced by SiC/Co realizes broadband absorption with an effective bandwidth of 6.6 GHz (10 – 16.6 GHz). Li et al. Fabricated SiC-coated Ni nanocomposite by arc discharge method, and the Ni @ SiC nanocomposite absorber composed of crystalline SiC and a small amount of C/SiOx has excellent microwave absorption properties in the C ~ Ku band, with EAB up to 7.2 GHz (6.2 ~ 13.4 GHz), covering almost half of the C band and the whole X band[67]. For the composite of magnetic materials and SiC materials, how to further improve its impedance matching performance and maximize the synergy of magnetic loss and dielectric loss is an important research topic.At the same time, the magnetic saturation of magnetic materials decreases at high temperature, so how to meet the good absorbing properties of magnetic materials/SiC at high temperature and other special environments is one of the important problems worthy of study.

4.3 SiC/C composite radar absorbing material

Carbon-based materials have low density, good conductivity and strong dielectric loss properties. The combination of carbon-based materials with SiC can effectively enhance the dielectric loss properties of composites, and achieve the goal of enhancing the absorption properties and broadening the absorbing bandwidth. The common carbon-based materials combined with SiC are carbon black, carbon nanotubes (CNTs) and graphene.
Du et al. Prepared C-doped silicon carbide ceramic nanocomposites using glucose as carbon (C) source[68]. The doped silicon carbide nanocomposite consists of amorphous carbon and graphite uniformly coated on the silicon carbide matrix. The dielectric properties of the nanocomposite can be tuned by varying the glucose content. When the glucose content is 0.50 mmol/mL and the matching thickness is 1.66 mm, the minimum reflection loss is − 76.6 dB at 16.0 GHz. CNTs have high thermal conductivity and excellent mechanical properties, which can not only enhance the mechanical properties of composites, but also improve the electromagnetic absorption properties. Zhang et al. Fabricated carbon nanotube-supported flexible silicon carbide fiber mats by electrospinning and polymer derived ceramic (PDC) method[69]. It is found that the introduction of carbon nanotubes greatly improves the electromagnetic absorption performance, and the conduction loss and polarization relaxation loss under the synergistic effect of silicon carbide fibers and carbon nanotubes consume the electromagnetic energy.When the carbon nanotube content is 3 wt%, the RLmin is − 61 dB and the EAB is 2. 9 GHz at a thickness of 3. 5 mm. Cheng et al. Added SiCNWs into supercritical ethanol-dried graphene aerogel (GA-S) by chemical vapor infiltration (CVI) to prepare a lightweight, heat-resistant, high-performance electromagnetic (EM) absorbing composite[70]. It is found that the growth of SiCNWs increases the yield strength of GA-S from 0.15 MPa to 0.47 MPa in the linear elastic region; The two-scale surface roughness increases the water contact angle from 53 ° to 134 ° of the SiCNW/GA-S; When the thickness is 3.63 mm, the RLmin value of the SiCNW/GA-S sample is − 54.8 dB at 5.3 GHz, and when the thickness is 2.0 mm, the SiCNW/GA-S sample has a wide effective absorption bandwidth of 6.5 GHz, as shown in Fig. 8. Silicon carbide and carbon composites are mainly fabricated by incorporating carbon nanostructures into nano-sized SiC, often resulting in limited and unstable interfaces. At the same time, carbon-based materials such as CNTs and graphene are expensive and complex to prepare, which to some extent hinders the wider application of SiC/C composites in electromagnetic wave absorption[71].

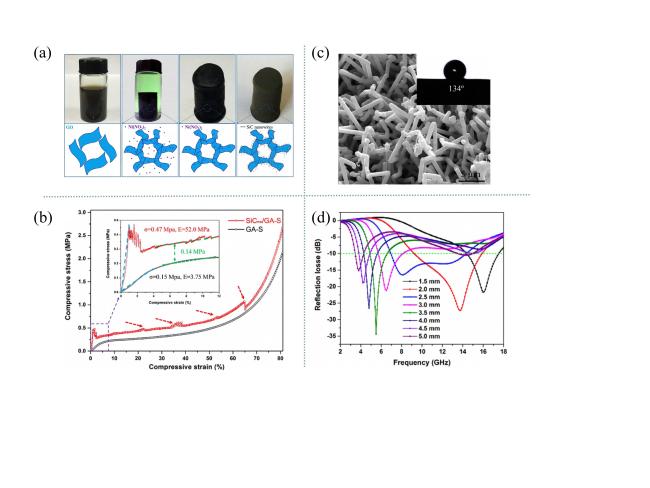

图8 SiCNW/GA-S样品的实物图及其性能图:(a) 实物图;(b) 力学性能图;(c) 疏水角;(d) 吸波性能图[70]

Fig. 8 Physical diagram and performance diagram of SiCNW/ GA-S sample. (a) Physical drawings; (b) mechanical property diagrams; (c) hydrophobic angle; (d) absorption performance graph[70]

4.4 SiC based multi-element composite radar absorbing material

The SiC-based multi-component composite material has a plurality of interfaces between different components, can generate a structure similar to a capacitor, and brings strong relaxation loss to the polarization of the interfaces, and the multi-component magnetic composite material can further enhance the magnetic loss performance, thereby enhancing the wave absorbing performance of the intrinsic SiC and binary SiC composite materials. Zhang et al. Used an in situ carbothermal reduction strategy to prepare a nanocomposite composed of SiC@SiO2 nanowires and Fe3Si magnetic nanoparticles from expandable graphite, Si-SiO2 mixed powder, and ferrocene[72]. The nanocomposite was found to have an EAB of 5.4 GHz at a matching thickness of 2.4 mm and a RLmin value as low as − 37.53 dB at 15.5 GHz at a matching thickness of 4.9 mm (Table 2). This is due to the synergistic effect of dielectric loss, magnetic loss, interface loss and scattering theory of the composite to produce good absorbing properties. At the same time, the introduction of organic polymer materials and the emerging MXene materials in multi-component composites is also an effective way to improve the absorbing properties. Ma et al. Developed a multiphase nanostructure of SiCNW/MXene in a polyvinylidene fluoride (PVDF) matrix through electrostatic self-assembly, and found that when the SiCNW:MXene ratio and the SiCNW/MXene concentration were 7:1 and 20 wt%, respectively, it reached an effective bandwidth of 5.0 GHz at Ku band.The RLmin can reach − 75.8 dB at the matched thickness of 1.45 – 1.5 mm, which is attributed to the formation of many inhomogeneous interfaces in the polymer matrix due to the synergistic effect of two-dimensional MXene nanosheets and one-dimensional SiCNw in the structure[73]. SiC-based multi-component composites achieve efficient absorption of electromagnetic waves through the dual enhancement of dielectric properties and magnetic loss properties, but how to further analyze the composite loss mechanism, improve the interface stability, and explore the best ratio system need further study.
表2 不同材料复合类型SiC基吸波材料的吸波性能表

Table 2 The absorbing performance table of SiC-based absorbing materials of different composite types

Composite type of materials Related materials Minimum reflection loss (RLmin) Minimum reflection loss frequency (GHz) Effective absorbing bandwidth (GHz) Optimum matching thickness (mm) ref
SiC fiber (SiCf) reinforced SiC absorbing material SiCf/SiC −16.1 8.2 1.5 5 62
SiCNWs/PyC-SiCf/SiC −58.5 15.6 6.13 2.2 64
SiC/magnetic material composite absorbing material Fe/SiC −46.3 6.4 Covering C-band 2.25 65
SiC/Co −25 14.2 6.6 2.1~2.5 66
SiC/Ni −42.1 11.2 7.2 3 67
SiC/C composite absorbing material CNTs/SiC −61 2.9 3.5 69
GO/SiC −54.8 5.3 6.5 2 70
SiC-based multielement composite absorbing material SiC@SiO2NWs/Fe3Si −37.53 15.5 5.4 2.4 72
(SiCNw)/MXene −75.82 15.68 5 1.45~1.5 73

5 Special SiC-based radar absorbing materials

5.1 SiC based radar absorbing metamaterial

Metamaterials are structural materials composed of sub-wavelength resonant or non-resonant units arranged periodically or aperiodically, which have extraordinary physical properties such as negative refractive index, inverse Doppler, inverse Cherenkov and so on, which are not possessed by materials in nature, and have shown great research potential in optics, acoustics, thermology and other fields[74][75~77]. Metamaterials have gradually come into people's vision as absorbing materials because of their unique electromagnetic response law. By controlling the transmission characteristics of the electromagnetic wave on the surface of the metamaterial through artificial design, efficient electromagnetic wave absorption can be realized, and the limitations of certain design dimensions and preparation methods of conventional absorbing materials can be effectively compensated, so that the electromagnetic wave absorption area can be flexibly regulated, and the metamaterial has important application value in the field of electromagnetic wave absorption[78].
Mei et al. Fabricated alumina/carbon nanotubes/SiOC composites with a twisted cross-metamaterial structure using 3D printing technology as well as precursor infiltration pyrolysis (PIP) method, in which carbon nanotubes not only act as a nucleating agent to obtain SiCNW, but also act as a conductive phase to form a conductive network structure, thereby improving the dielectric and conductive losses of the composite[79]. When the thickness is 2. 8 mm, the RLmin of the Al2O3/CNT/SiCNW/SiOC composite is − 56.84 dB at 12. 2 GHz, and the effective absorption bandwidth ranges from 8. 2 GHz to 12. 4 GHz; When the thickness is 3. 2 mm, EAB can cover the whole X-band and has excellent EMW absorption performance. In order to further explore the influence of metamaterial structure on absorbing performance and the regulation mechanism of impedance matching characteristics. Li et al. Developed a broadband radar absorbing composite foam metamaterial (CFMM) constructed by silicon carbide/carbon (SiC/C) foam material, FR4 dielectric material and metal pattern, designed and studied the influence of the geometric size of the metal pattern design on the absorption performance of CFMM, and found that by adjusting the side length, array period, line width or split width of the metal pattern,The CFFM impedance can be effectively adjusted to change the absorption characteristics of the CFMM, and the low-density CFMM with an effective absorbing bandwidth of about 14 GHz (4 ~ 18 GHz) is prepared by the template method. The material better meets the development trend of "thin, light, wide and strong" absorbing materials, and its structure, physical object and performance are shown in Figure 9[80]. In order to reduce the influence of the pattern layer on the absorbing material, Li et al. Studied an all-dielectric radar absorbing array metamaterial (AMM) based on silicon carbide/carbon (SiC/C) foam dielectric material and metamaterial through simulation and experiment, and analyzed the influence of the physical size and array period of AMM on the absorption performance.An optimized AMM with excellent absorption properties was fabricated, and the effective absorption bandwidth of the optimized AMM was about 14 GHz (4 ~ 18 GHz), and the material also had good mechanical properties and thermal stability, which provided a reference for the development of multifunctional SiC-based absorbing metamaterials[81]. Although there have been many studies on SiC-based absorbing metamaterials, most of them focus on the realization of lightweight, broadband absorption and polarization angle insensitivity. In addition, metamaterials may face a more severe use environment in practical applications, and how to further broaden the functionality, while considering the economy and accuracy of material design and preparation, is an important research aspect in the future.

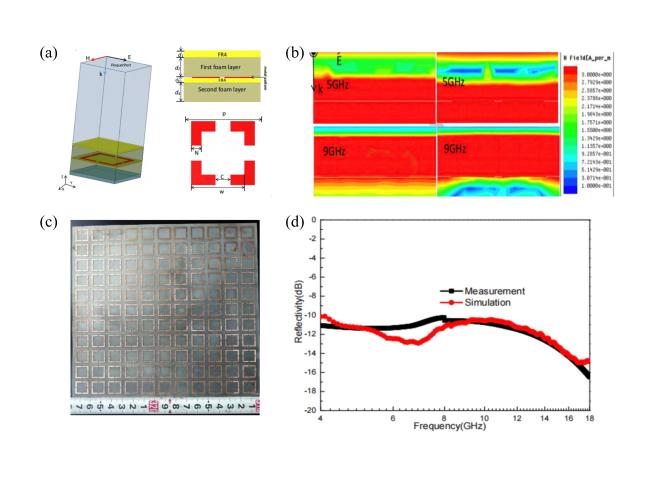

图9 (a) CFMM结构设计示意图;(b) 电磁场模拟图;(c) 实物图;(d) 吸波性能仿真与实测对比图[80]

Fig. 9 (a) Schematic diagram of the structural design of CFMM; (b) electromagnetic field simulation diagrams; (c) physical drawings; (d) absorption performance simulation and measured comparison chart[80]

5.2 SiC based high temperature radar absorbing materials

High temperature absorbing materials are mainly used to meet the stealth requirements of aircraft engine nozzles, aircraft aerodynamic heating components and high temperature parts of naval ships, and show good application prospects in both military and civil fields. SiC material has good high temperature resistance and can maintain good dielectric properties at high temperature, so it is a kind of high temperature absorbing material with great development potential. At present, SiC-based high-temperature absorbing materials can be divided into SiCf/SiC-based high-temperature absorbing materials, C/SiC-based high-temperature absorbing materials, SiC/ceramic-based high temperature absorbing materials and SiC high-temperature absorbing metamaterials. Han et al. Fabricated SiCf reinforced SiCf/SiC composites by in situ growth of silicon carbide nanowires on silicon carbide fibers by chemical vapor infiltration[82]. It is found that the conductivity and complex permittivity of the composite show obvious temperature dependence in the frequency range of 8. 2-12. 4 GHz at 25-600 ℃, and increase with the increase of temperature, with a minimum reflection loss of − 47.5 dB at 11. 4 GHz and an effective bandwidth of 2. 8 GHz at 600 ℃. Ceramic matrix composites are the main high temperature absorbing materials because of their lightweight, high strength, high hardness, good dielectric properties and excellent environmental stability[83]. Silicon nitride (Si3N4) is a typical ceramic material, and SiC as an absorber of Si3N4 can show good high-temperature microwave absorption properties, which has attracted more and more attention. Zhou et al. Prepared silicon nitride ceramics modified by silicon carbide nanofibers by gel casting to improve the dielectric and microwave absorption properties in the X-band (8.2 ~ 12.4 GHz) at 25 ~ 800 ℃, and the composite also had obvious temperature dependence.The dielectric constant increases with the increase of temperature from 25 ℃ to 800 ℃, and when the content of silicon carbide nanofibers is 7. 5 wt%, it shows excellent X-band microwave absorption ability and stability at 25 ~ 800 ℃[84]. In order to further improve the absorbing properties of binary ceramic matrix composites, Li et al. Designed a high temperature electromagnetic wave absorption structure model with low, high and low dielectric constant hierarchical structure from two aspects of multi-material composite and morphology control.And Si3N4-SiC/SiO2 composite ceramics were prepared. It was found that the effective dielectric constant was weakly dependent on temperature, so the Si3N4-SiC/SiO2 showed good matching characteristics between room temperature electromagnetic absorption and high temperature electromagnetic absorption[85]. At 500 and 600 ℃, the RLmin of the Si3N4-SiC/SiO2 with a certain sample thickness reaches − 51.9 and − 35.9 dB, respectively, and the effective bandwidth reaches 4.16 and 4.02 GHz, respectively, indicating that it has broad application prospects in the field of high temperature electromagnetic absorption. The combination of SiC/ceramic matrix composites and metamaterial design is also one of the effective ways to improve the absorbing properties of materials. According to the design principle of sandwich metamaterial absorbing composite materials, Zhou Qian et al. Selected low resistance SiCf/Si3N4 as the loss layer and high resistance SiCf/Si3N4 as the dielectric layer to prepare sandwich structure SiCf/Si3N4 composite metamaterial[86]. The experimental results show that the design of the discontinuous loss layer on the mesoscopic scale can improve the impedance matching of the material and enhance its surface current, so that the room temperature reflection loss of the composite metamaterial is less than − 11.3 dB in the frequency range of 8 ~ 18 GHz. When the temperature rises to 600 ℃, the average reflection loss in the frequency range of 8 ~ 18 GHz hardly changes, and the absorber has temperature-insensitive microwave absorbing characteristics. In addition, some scholars have used aluminosilicate fibers and SiC materials to show good high temperature absorbing properties[18]. For high-temperature SiC-based absorbing materials, most of them focus on the composite of SiC materials and ceramic-based materials, and develop towards metamaterials. However, low-frequency absorbing materials are an important research topic.The low frequency absorbing properties at high temperature are worthy of attention, and whether SiC-based high temperature and low frequency absorbing materials can be developed by using new material design and material preparation is one of the key research directions.

5.3 Multifunctional SiC-based radar absorbing material

With the rapid development of high and new technology, it provides a broader stage for absorbing materials. However, these materials will also face more demanding application environments. Therefore, it is an inevitable development direction to develop microwave absorbing materials with high adaptability to complex environment, multi-function and ultra-long life[87,88]. Fan Bingbing's team at Zhengzhou University prepared a multifunctional SiC nanofiber aerogel (SiC NFA) by chemical vapor deposition (CVD) technology, which showed low density (~9 mg·cm−3), excellent mechanical properties, high fatigue resistance, fire resistance, high temperature thermal stability and good thermal insulation properties[89]. In addition, the oil-modified silicon carbide NFA has significant hydrophobicity and good self-cleaning property, and it has good microwave absorption property with a RLmin of − 39.37 dB at 7.04 GHz when its thickness is 1.9 mm. On the basis of intrinsic SiC nanofiber aerogel, the team also prepared a multifunctional SiC@SiO2 nanofiber aerogel (SiC@SiO2NFA) with three-dimensional (3D) porous crosslinking structure.The material has the advantages of ultra-low density (~11 mg·cm−3), superelasticity, fatigue resistance and fire resistance, high-temperature thermal stability, thermal insulation property and strain-dependent piezoresistive sensing behavior, the RLmin value of the material is − 50.36 dB, the EAB value is 8.6 GHz, the versatility is further expanded, and the microwave absorbing property is enhanced to a certain extent[90]. In addition, compounding SiC materials with organic materials can also enhance their functionality. Wang Zhijiang's team prepared uniform size silicon carbide nanoparticles (silicon carbide NPs) by carbothermal reduction, and then dispersed them into epoxy resin matrix.Silicon carbide type memory epoxy (SSME) composite was formed, and it was found that when the proportion of silicon carbide NPs was 20 wt%, the RLmin was − 62.02 dB and the EAB was 7.7 GHz at the optimum thickness of 4.25 mm.When the thickness is 4. 50 mm, the EAB is 8. 1 GHz. In addition, the addition of silicon carbide NPs makes the material have good deformability and shape recovery ability, compared with the sample without silicon carbide NPs.The deformation efficiency and shape recovery rate are improved by 125. 81% and 17. 84%, respectively, which further expands the application prospect of SiC-based radar absorbing materials, indicating that it has great potential in the development of multi-functional, flexible, wearable and coating materials[91]. At present, there are many studies on the functional expansion of SiC-based multifunctional absorbing materials, which have laid a good foundation for future practical applications to a certain extent. The research on SiC absorbing materials in the field of anti-corrosion is mostly in its infancy.At the same time, it is particularly important to study its superhydrophobicity and antifouling properties, so the development of efficient, green, environmentally friendly, anticorrosive and antifouling SiC-based multifunctional absorbing materials is of great value to improve the safety and reliability of naval equipment in the marine environment[89].

6 Conclusion and prospect

SiC-based radar absorbing materials have good high temperature resistance, corrosion resistance and chemical stability, and show good application prospects in the field of electromagnetic wave absorption. Based on the current development concept of "thin, light, wide and strong" absorbing materials, researchers aim to further reduce the mass and thickness of materials from two aspects of microstructure and material composite, and at the same time achieve smaller reflection loss and stronger absorbing bandwidth. At the same time, a large number of researchers have designed and prepared some high-performance SiC-based absorbing metamaterials by combining SiC-based absorbing materials with metamaterial design. In addition, SiC-based radar absorbing materials also show good application potential in complex environments, especially in the field of high temperature radar absorbing. However, although the microwave absorbing properties of SiC materials have been greatly improved, there are still some problems to be solved. First of all, although the use of traditional morphology control and material composite can effectively enhance the absorbing properties of SiC and deepen its lightweight goal, the influence mechanism of material composite and morphology control on the loss mechanism of SiC materials is not deep enough. Secondly, although SiC-based metamaterials have excellent absorbing properties, it is of great research value to further broaden their functionality so as to realize their application in complex environments. Finally, for a large number of high-performance SiC-based absorbing materials, the preparation process is complex and the preparation cost is high, so how to realize the low-cost and large-scale controllable preparation is one of the difficult problems. Based on the above problems and challenges, the main research directions in the future may include the following three aspects:
(1) SiC with single morphology and single component is difficult to meet the actual demand, and the development concept of "thin, light, wide and strong" of absorbing materials can be further deepened through multiple structure control and multi-component synergy, so the development of multi-structure and multi-component composite SiC-based absorbing materials is an important trend in the future;
(2) Based on the absorbing mechanism of intrinsic SiC materials, the composition-structure-property relationship model of materials is constructed by means of material simulation calculation, material informatics and experimental verification, and the related material design and preparation are carried out on this basis, so as to realize the controllable and efficient preparation of new low-cost and high-performance SiC-based absorbing materials;
(3) Low-frequency absorbing materials have always been the focus and difficulty of absorbing materials research, and it is one of the key research directions in the future to design SiC materials to develop SiC-based high-temperature and low-frequency absorbing materials by using the good high-temperature absorbing properties of SiC.
(4) To further explore the versatility of SiC-based absorbing materials, so that they can not only have excellent absorbing properties, but also have good wear resistance, impact resistance, hydrophobicity, high temperature resistance, corrosion resistance and so on, so as to better realize their application in complex environments.
